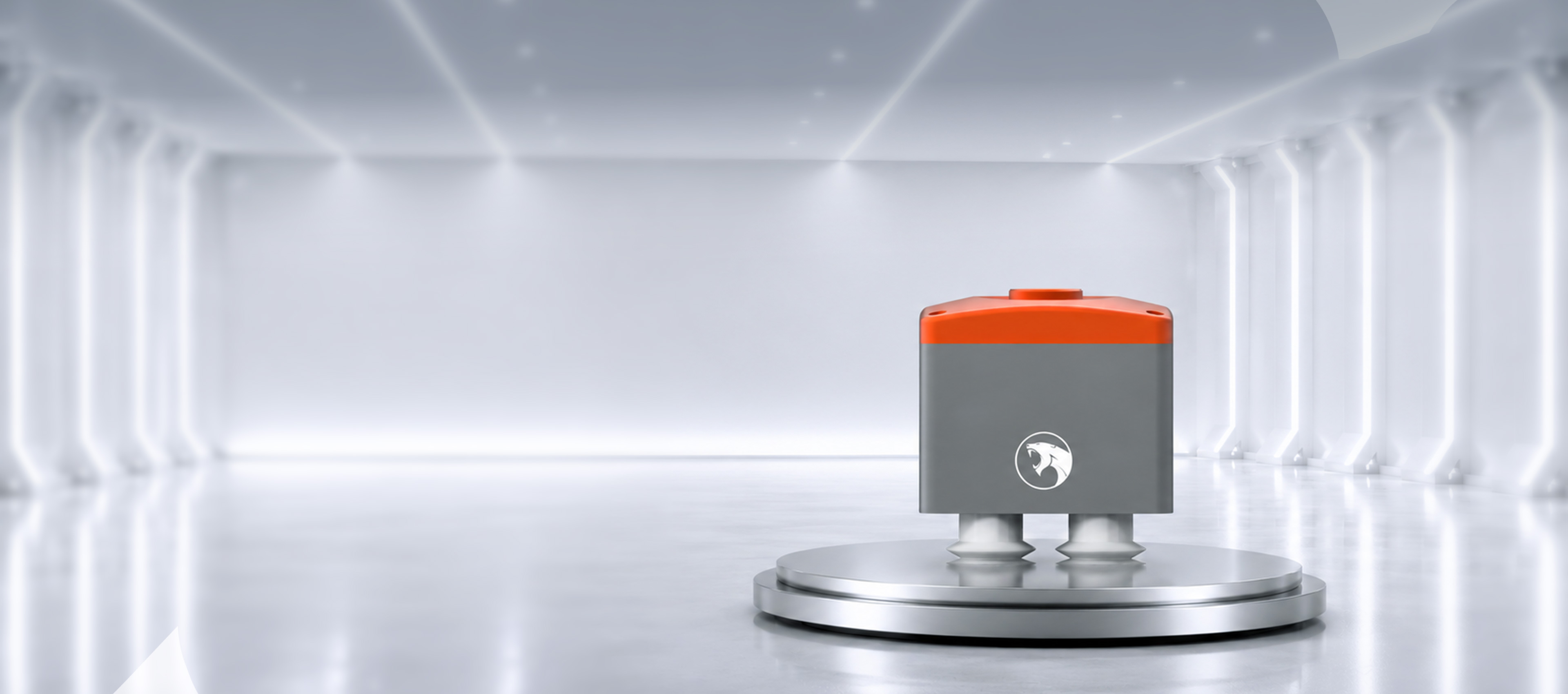

Z-ESC-70

Product feature

Flexible clamping

Dropping detection,area output function

High compatibility

Compatible with different pump size

Built-in controller

Small footprint,easy to integrate

Control method

485（Modbus RTU), I/O

Product parameter

Max vacuum degree
50%
Suction force
10~50N
Flow rate
1.5L/min
Recomended suction weight
≤1kg
Suction/release time
0.5S/0.3S
Pump number
1~4
Weight
0.35kg
Dimension
70*52*74.5mm
Working voltage
24V±10％
Rated current
0.3A
Peak current
0.6A
Power
10W
Protective level
IP20
Noise
60dB（A）
Motor type
Burshless motor
Temperature range
5~55℃
Humidity range
35~80%RH（No frost）
Outlet specification
8-core cable, 2m length

Document download

Z-ESC-70 size diagram

Online review

Z-ESC-70 3D model

Online review

Z-ESC-70 product brochure

Online review

Video tutorial

Z-ESC-70
Z-ESC-70

FAQ

How to control the gripper via 485 communication?
Control message examples will be provided, and the content needs to be written as hex adecimal floating-point
numbers.
What is the CRC calculation model?
The reference model is CRC-modbus 16x6+x15+x2+1.
