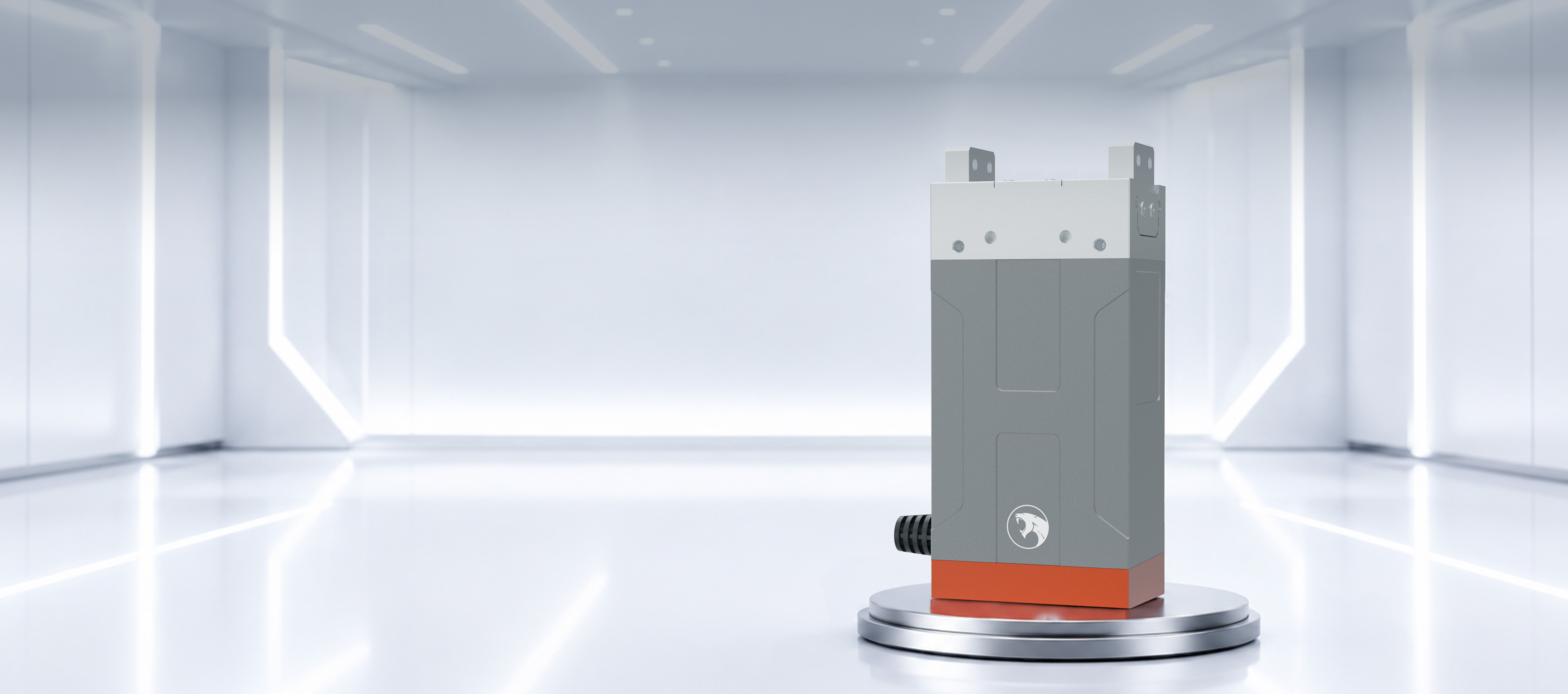

Z-EFG-12
FAQ
ls the electric gripper Z-EFG series waterproof?
No, it is not waterproof. For special requirements, please consult the sales personnel.
How can we determine if the electric gripper has gripped an object?
For the I/O series of Z-EFG-8S, Z-EFG-12, and Z-EFG-20, only the stopping of the gripper can be detected. In the
case of the pulse-type Z-EFG-20 gripper, the number of feedback pulses reflects the current position of the gripper, allow-
ing users to judge whether an object has been gripped based on the number of pulses.
case of the pulse-type Z-EFG-20 gripper, the number of feedback pulses reflects the current position of the gripper, allow-
ing users to judge whether an object has been gripped based on the number of pulses.
Where is the driver controller for the gripper located,and do I need to purchase it separately?
The driver controller is built-in and does not need to be purchased separately.
Does the gripper product include the front-end gripping part?
No,it does not. Users need to design the gripping fixture according to the actual objects to be gripped.In
addition, Hitbot also provides some fixtures.Please contact the sales personnel for more information.
addition, Hitbot also provides some fixtures.Please contact the sales personnel for more information.
How can I view the model and corresponding wiring sequence of the gripper?
Please refer to the corresponding product manual.
Can the gripper ID and baud rate be modified?
The provided upper computer software can be used to modify the gripper ID and baud rate,and the modifica-
tion steps will be provided.
tion steps will be provided.
How to control the gripper via 485 communication?
Control message examples will be provided, and the content needs to be written as hex adecimal floating-point
numbers.
numbers.
What is the CRC calculation model?
The reference model is CRC-modbus 16x6+x15+x2+1.
Motion element grease supply period?
Every 6 months or 1 million times movement.
