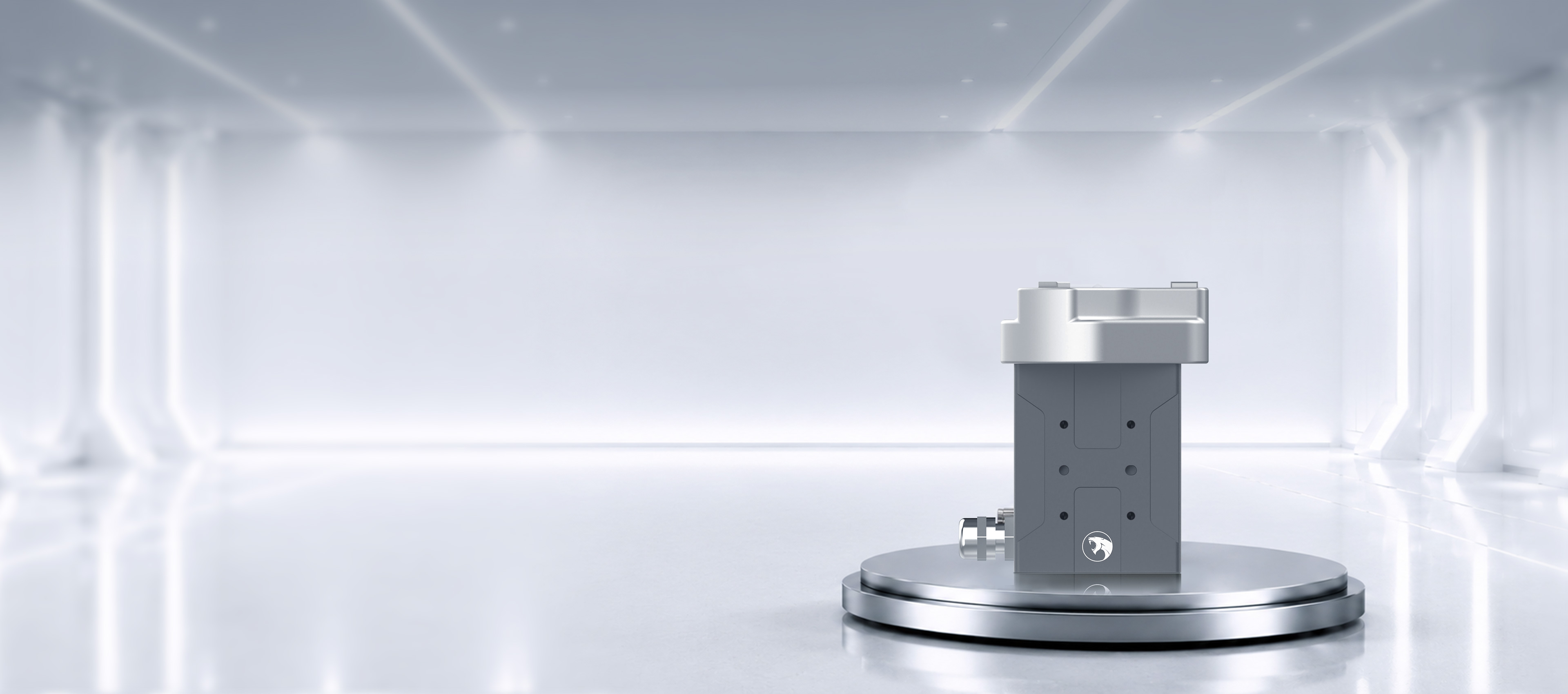

Z-ECG-10

Product feature

Flexible clamping

Power-off self-locking, dropping detection,area output function

Precise control

Force,position,and speed can be precisely controlled Modbus

Long service life

Millions of cycles,better than pneumatic grippers

Built-in controller

Small footprint,easy to integrate

Product parameter

Total stroke
10mm（Adjustable）
Clamping force
3~10N（Adjustable）
Repeatability
±0.03mm
Recommended clamping weight
≤0.2kg
Transmission mode
Precision planetary gearbox + ball guide rail
Control method
485（Modbus RTU）、I/O
Shortest motion time for one-way stroke
0.3s
Motion method
Three-finger parallel movement
Weight
0.5kg
Size
73*73*95.5mm
Working voltage
24V±10％
Rated current
0.3A
Peak current
0.6A
Power
10W
Protective level
IP40
Motor type
Servo motor
Temperature range
5~55℃
Humidity range
35~80%RH（No frost）
Outlet specification
8-core cable, 2m length
