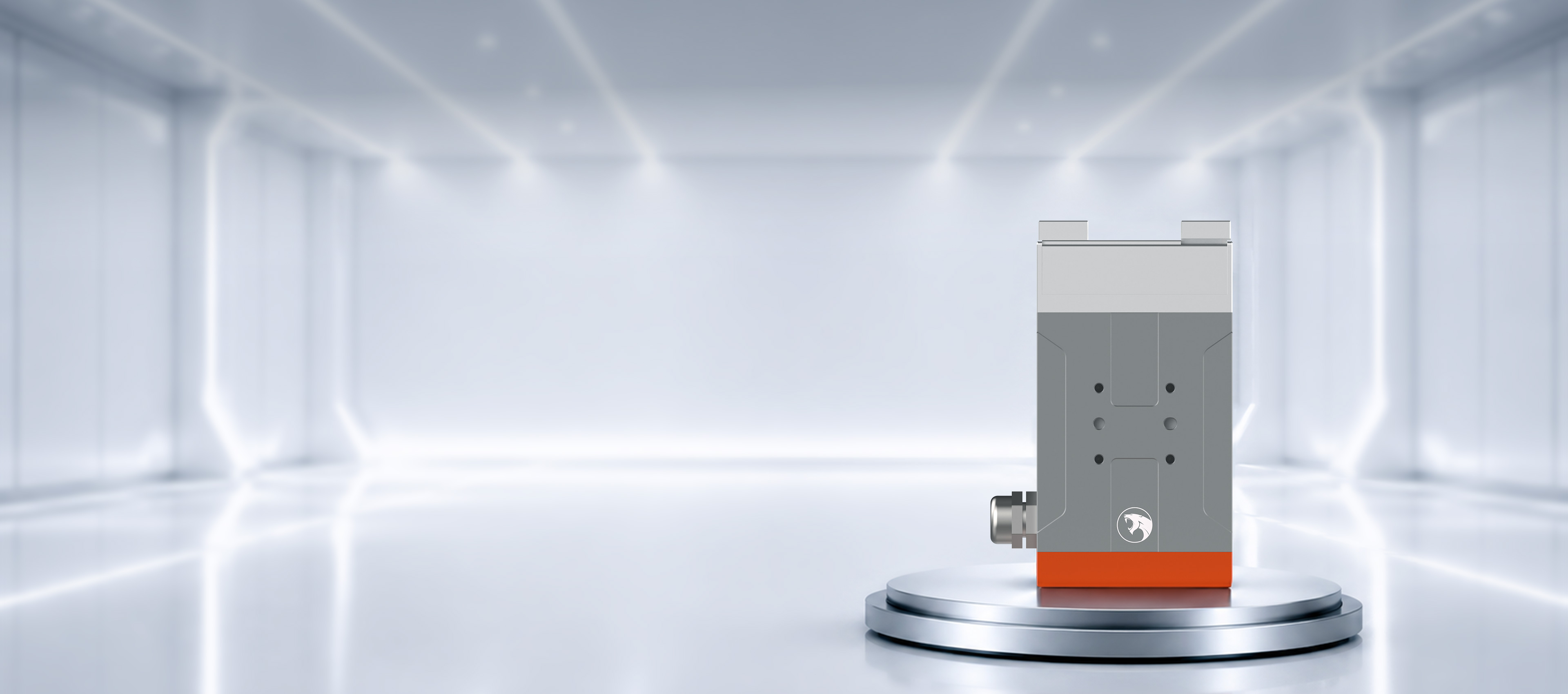

Z-EFG-26P

Product feature

Flexible clamping

Clamping drop down detection,area output function

Precise control

Force,position,and speed can be precisely controlled Modbus

Long service life

Millions of cycles,better than pneumatic grippers

Built-in controller

Small footprint,easy to integrate

Product parameter

Total stroke
26mm（Adjustable）
Clamping force
15~50N（Adjustable）
Repeatability
±0.02mm
Recommended clamping weight
≤0.5kg
Transmission mode
Precise planetary reducer+cross roller guide
Control method
485（Modbus RTU）、I/O
Shortest motion time for one-way stroke
0.3s
Motion method
Two-finger parallel movement
Weight
0.5kg
Size
55*29*103mm
Working voltage
24V±10％
Rated current
0.4A
Peak current
1A
Power
10W
Protective level
IP40
Motor type
Servo motor
Temperature range
5~55℃
Humidity range
35~80%RH（No frost）
Outlet specification
8-core cable, 2m length

Document download

Z-EFG-26P size diagram

Online review

Z-EFG-26P 3D model

Online review

Z-EFG-26P product brochure

Online review

Video tutorial

Z-EFG-26P
Z-EFG-26P

FAQ

Can the gripper ID and baud rate be modified?
The provided upper computer software can be used to modify the gripper ID and baud rate,and the modifica-
tion steps will be provided.
Motion element grease supply period?
Every 6 months or 1 million times movement.
