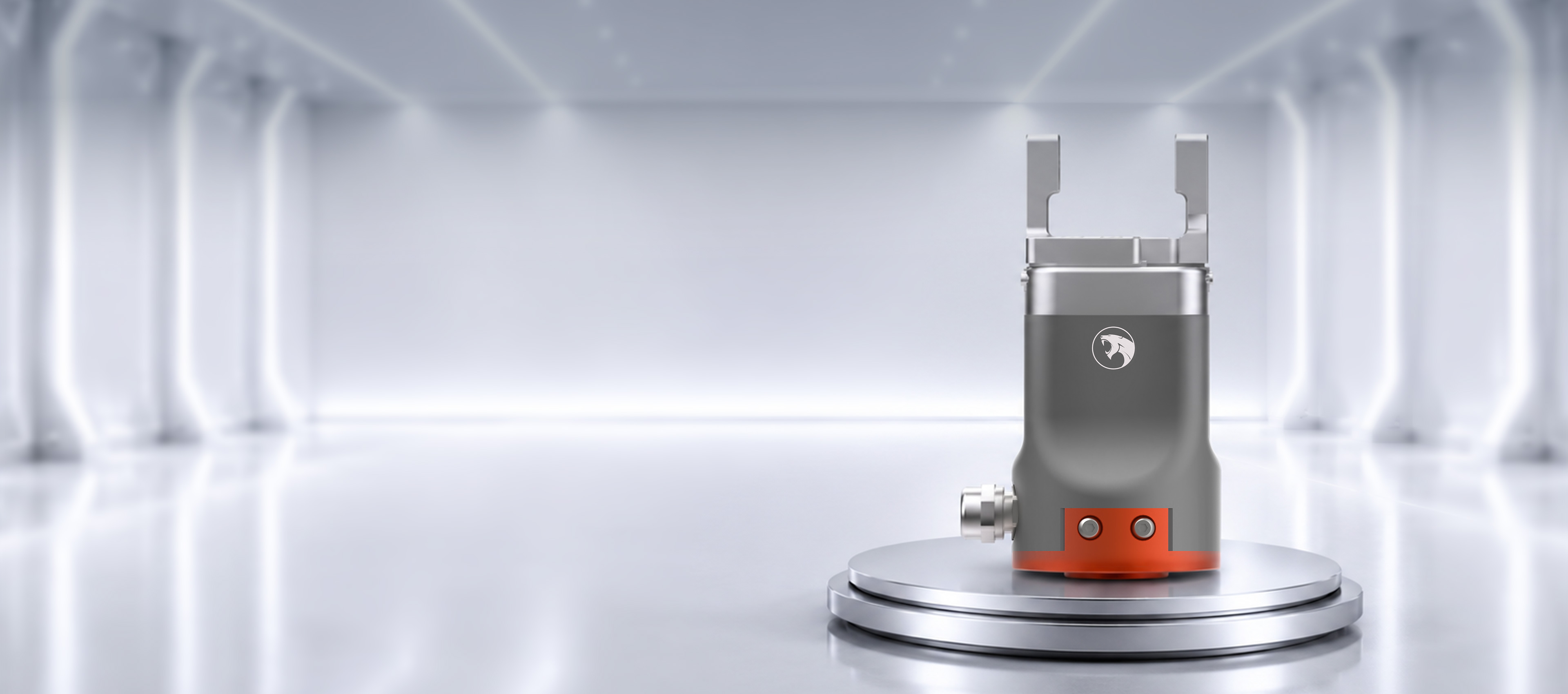

Z-EFG-C35

Product feature

Flexible clamping

Clamping drop down detection,area output function

Precise control

Force,position,and speed can be precisely controlled Modbus

Long service life:

Millions of cycles,better than pneumatic grippers

Built-in controller:

Compact, easy to integrate

Product parameter

Total stroke
35mm（Adjustable）
Clamping force
15~50N（Adjustable）
Repeatability
±0.03mm
Recommended clamping weight
≤1kg
Transmission mode
Precise planetary reducer+cross roller guide
Control method
485（Modbus RTU）、I/O
Shortest motion time for one-way stroke
0.5s
Motion method
Two-finger parallel movement
Weight
0.5kg
Size
63*63*92mm
Working voltage
DC24V±10%
Rated current
0.3A
Peak current
1A
Power
8W
Protective level
IP54
Motor type
Servo motor
Temperature range
5~55℃
Humidity range
35~80%RH（No frost）
Outlet specification
12-core cable, 2m length

Document download

Z-EFG-C35 size diagram

Online review

Z-EFG-C35 3D model

Online review

Z-EFG-C35 product brochure

Online review

Video tutorial

FAQ

How to control the gripper via 485 communication?
Control message examples will be provided, and the content needs to be written as hex adecimal floating-point
numbers.
What is the CRC calculation model?
The reference model is CRC-modbus 16x6+x15+x2+1.
Motion element grease supply period?
Every 6 months or 1 million times movement.
